UltraGene® qPCR instruments

Efficient & Cost-effective Real Time PCR system

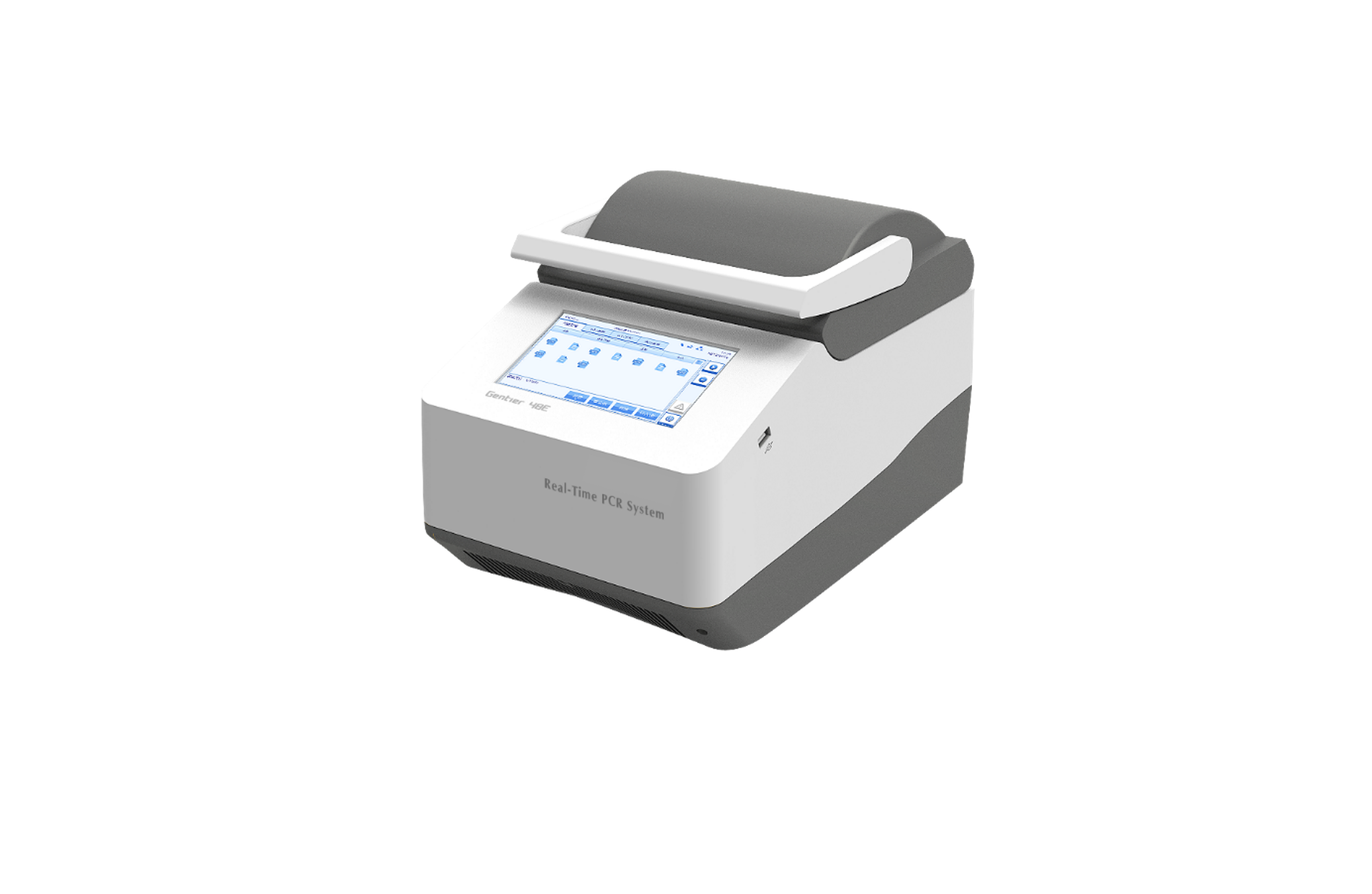

UltraGene® 48E - PCR System

UltraGene® 48E real-time fluorescence quantitative PCR detection system is science and technology tailored specifically for small and medium-sized laboratories, mobile laboratories, on-site testing and other workers. With excellent performance and portability, your testing is more convenient, accurate and efficient.

UltraGene® 48E - Technical Specifications

  • Sample capacity

    48

  • Consumables

    0.2ml 8-strip tubes, 0.2ml PCR single tube (Optical flat cap, clear tube)

  • Gradient Range

    1°C - 40°C

  • Gradient block

    8 Rows

  • Special temperature protocol

    Gradient PCR, Long PCR, Touch Down PCR

  • Fluorescent channel

    4

  • Reaction Volume

    5-100µl

  • Power usage

    Automatic detection of the consumable presence

  • Communication Port

    1 ethernet and 2 USB

  • Footprint (W*D*H)

    260mmX400mmX260mm

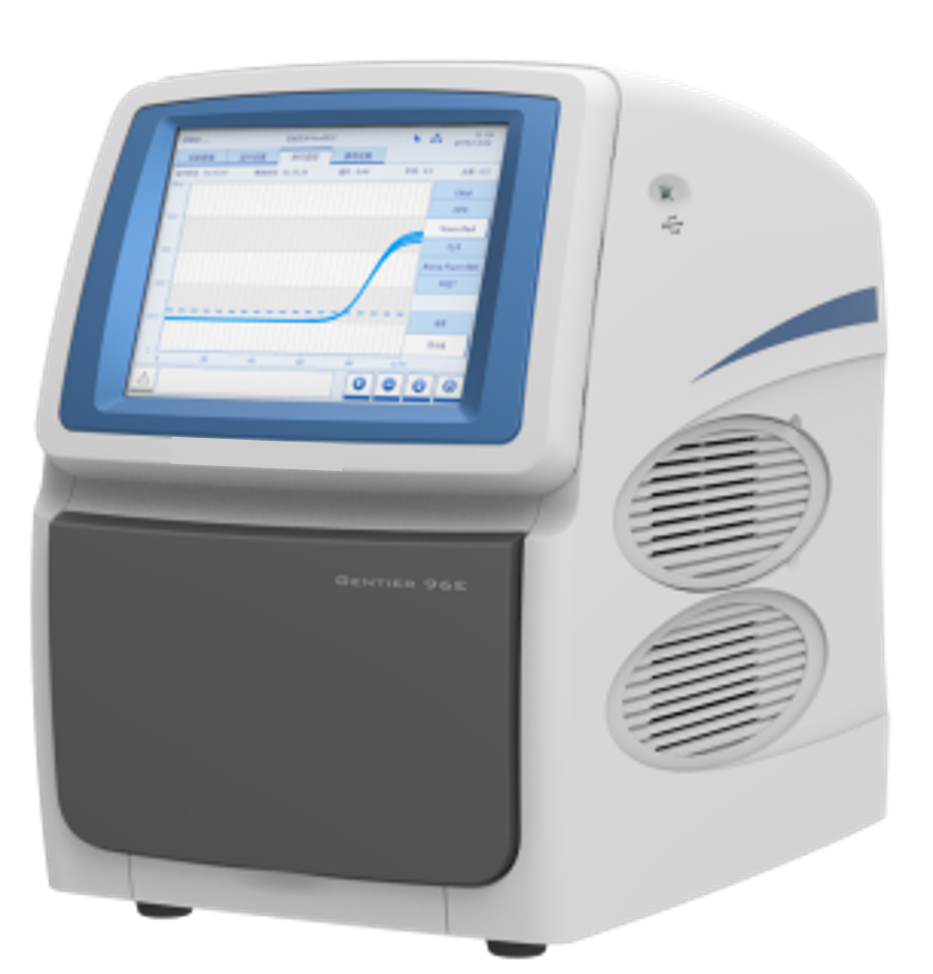

UltraGene® 96R - PCR System

UltraGene® 96R is a real time fluorescent quantitative PCR detection system to meet the experimental needs of hogh-end users. This product has many advantages such as scientic and efficient temperature control system and photoelectric system, powerful and easy-to-use software analysis function, humanized control metho, etc and can easily downstream multiple gene detection, quantitative analysis, SNP analysis, melting curve analysis and other application

UltraGene® 96R - Technical Specifications

  • Sample capacity

    96

  • Consumables

    0.2ml 96-well Plates (unskit); 0.2ml 8-strip tubes, 0.2ml PCR single tube (Optical flat cap, forosted, white tube)

  • Gradient Range

    1°C - 40°C

  • Gradient block

    8 Rows

  • Special temperature protocol

    Gradient PCR, Long PCR, Touch Down PCR

  • Fluorescent channel

    4

  • Reaction Volume

    5-100µl

  • Power usage

    AC 100 to 125V / 200 to 240V (50/60Hz)

  • Communication Port

    1 ethernet and 2 USB

  • Footprint (W*D*H)

    355 mm X 480mm X 485mm

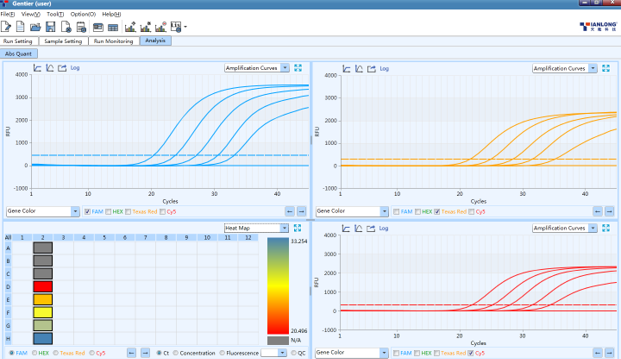

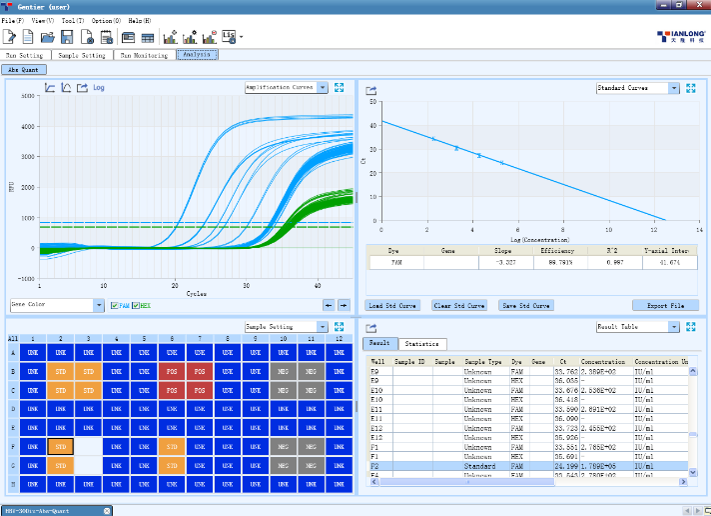

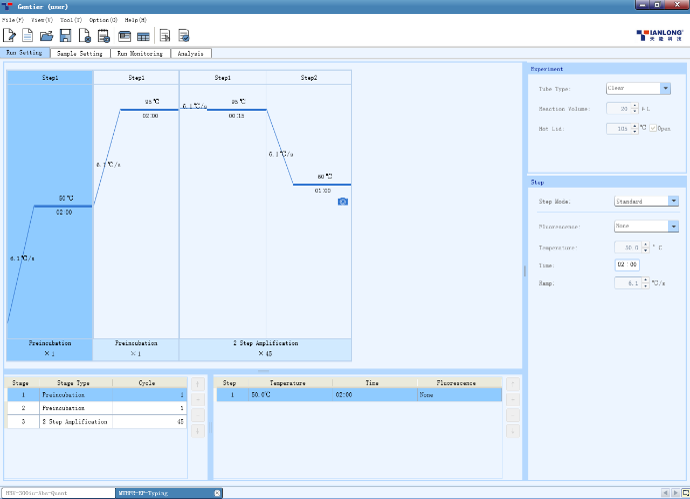

Easy-to-Use Software

Friendly interface & Clearly functional modules design

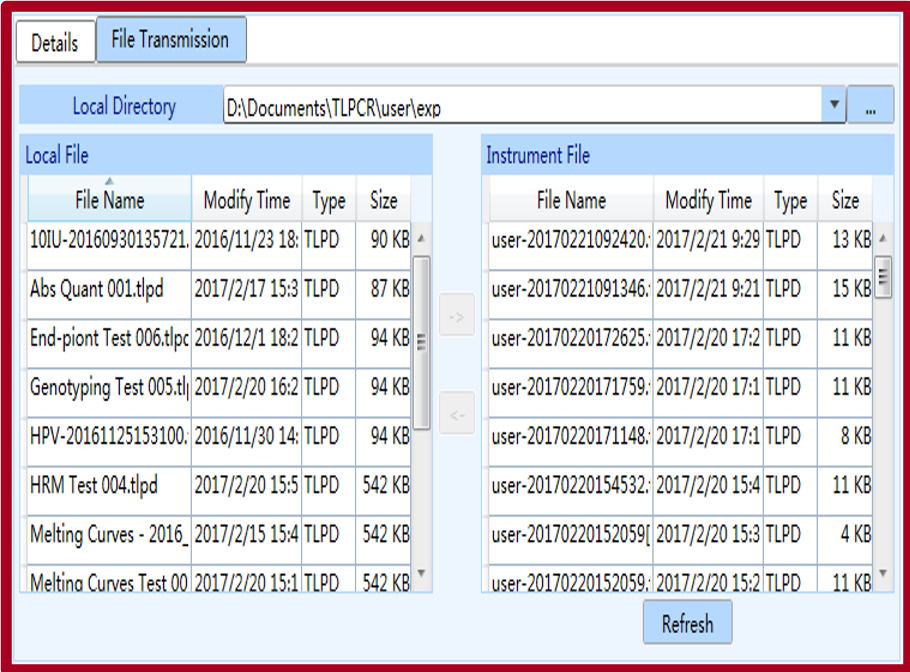

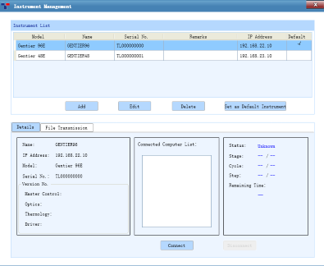

Instrument management, Experiment management & Data transmission

Data Quality

Gradient diluted sample uniformity

Multiplex PCR gradient samples uniformity

Ordering Information

Product Reference
Ultragene qPCR system - 48 samples format - 4 channels with Gradient (CE)
149A48
Ultragene qPCR system - 96 samples format - 4 channels with Gradient (CE)
149A96

Downloads

Leaflet

Download
