Manual & Automated workflows for DNA / RNA extraction

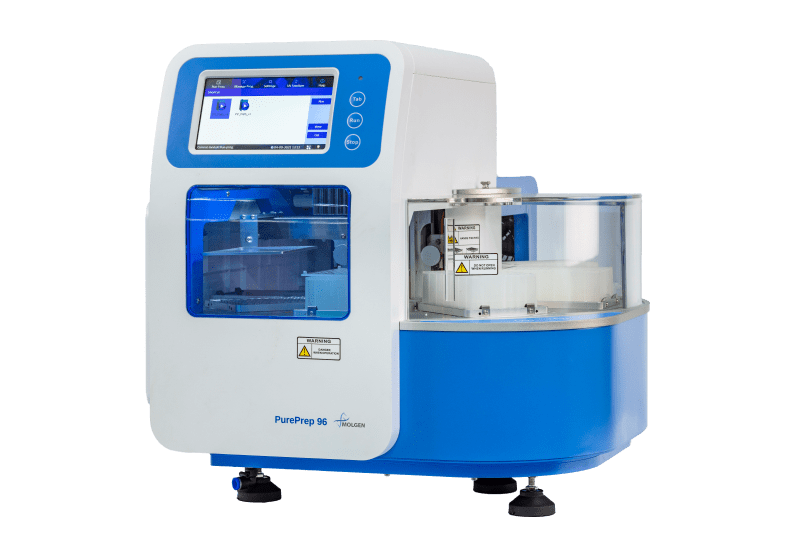

PurePrep 96 Nucleic Acid Purification System

 PurePrep 96 is an automated DNA and RNA purification system, suitable for high throughput workflows with up to 96 samples per run.

The device uses magnetic separation technology for different matrices like blood, cultured cells, bacteria, tissues, cell-free body fluids, and plant samples.

The small-footprint system enables high-speed, high-quality processing with magnetic rods used to transfer magnetic beads through the various purification phases of mixing, binding, washing and elution resulting in purified DNA and RNA.

The PurePrep 96 is compatible with a diverse range of other automated systems for a complete workflow.

The system is optimized for use in combination with our PurePrep extraction kits.

Features

  • 96 wells/wide volume range: 50 – 1000 μL

  • High-speed extraction protocol: 15-40 minutes (dependent on sample type and method)

  • Accurate temperature control system (±1°C) ensuring stability purification performance

  • Very user-friendly: easy to install, operate and maintain without a computer

  • UV sterilization program

  • Open and multiple functions design to provide more methods for reagent optimization

  • 8-plate identification design guarantees the target position

  • Automatic detection of the consumable presence

  • QR code identification for reagent recognition, without program selection

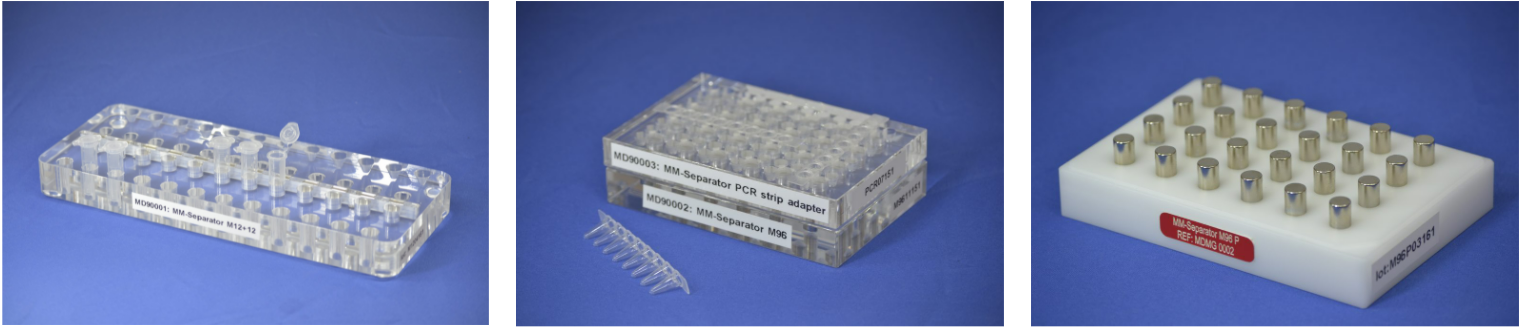

Magnetic Separators for Manual Use

These separators are intended for manual processing in microtubes, microplates and PCR tube-strips. The separators are available as transparant acrylic versions for optimal visual inspection needs and in chemically resistant polyoxymethylene (POM) for routine use of organic solvents.

Extraction Consummables



MagSi-DX Pathogen kits are intended to be used for the isolation and purification of viral RNA for subsequent in-vitro diagnostic purposes. The kit can be used with human respiratory swabs and saliva. The kit is designed to be used with any downstream application with amplification and detection of viral RNA (RT-qPCR, sequencing).

MagSi-DX Features

  • CE-IVD marked

  • High-speed extraction protocol: 15-40 minutes (dependent on sample type and method)

  • Accurate temperature control system (±1°C) ensuring stability purification performance

  • Very user-friendly: easy to install, operate and maintain without a computer

  • UV sterilization program

  • Open and multiple functions design to provide more methods for reagent optimization

  • 8-plate identification design guarantees the target position

  • Automatic detection of the consumable presence

  • QR code identification for reagent recognition, without program selection

The MagSi-NA Pathogens kit allows cost-effective extraction of DNA and RNA from a variety of sample materials like serum, plasma, oropharyngeal swab, nasopharyngeal swab, or any other respiratory samples. Purified total nucleic acids can be used for qPCR based or any other enzymatic pathogen detection method. The ready-to-use reagents and simple protocol are convenient in use and easy to automate. The included MagSi-PA VII magnetic beads are optimized for fast separation even from viscous sample lysates.

MagSi-NA Features

  • Simple protocols, complete processing at room temperature possible

  • Consistently high yield of total nucleic acids

  • Very strong magnetic beads enable fast magnetic separation even from viscous samples

  • Suitable for many enzymatic downstream applications including qPCR and LAMP

  • Preparation time for 96 samples: <30 min

  • Easy to automate with PurePrep systems and rQ (automation-ready-to-use) kits

  • Collect your samples pain-free with the SafeQ Saliva Collection Ki

  • Save costs while maintaining sensitivity: Magnetic Sample Pooling

Ordering Information

Product Reference
PurePrep 96 Nucleic Acid Purification System (CE)
AS00001
MM-Separator M12 + 12 P (CE)
Magnetic separator for manual processing in 12 x 1.5 mL and 12 x 2 mL tubes, POM
MDMG0001
MM-Separator M96 P (CE)
Magnetic separator for manual processing in 96-well microplates, POM
MDMG0002
MagSi-NA Pathogens kit (96 preps) (RUO)
MDKT00210096
MagSi-NA Pathogens kit (10x96 preps) (RUO)
MDKT00210960
MagSi-NA Pathogens kit (5K preps) (RUO)
MDKT0021005K
MagSi-NA Pathogens kit (25K preps) (RUO)
MDKT0021025K
MagSi-DX Pathogens kit (96 preps) (CE-IVD)
MDDX00010096
MagSi-DX Pathogens kit (10x96 preps) (CE-IVD)
MDDX00010960
MagSi-DX Pathogens kit (5K preps) (CE-IVD)
MDDX0001005K
MagSi-DX Pathogens kit (25K preps) (CE-IVD)
MDDX0001025K
